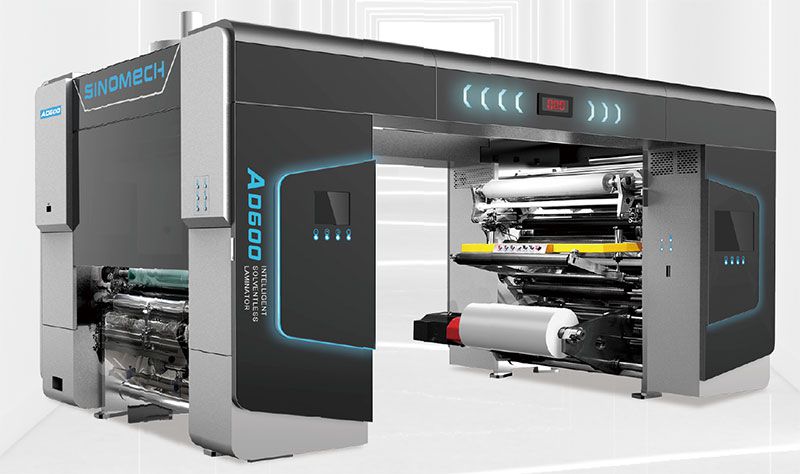

Digital Solventless Laminator A600D

Solventless Lamination Machine

Digital Solventless Laminator A600D
Max lamination speed: 600m/min
Max web width: 1050/1300/1500mm
Max unwinding diameter: 1000mm
Max rewinding diameter: 1000mm
Core winding diameter: 76 or 152mm
Features
  • Especially suitable for medium and large flexible packaging and label companies
  • Applicable substrates: Plastic films, metalized films, aluminum foil, etc.
  • Tension control: Precise control with dancer roll and load cell
Main Functions

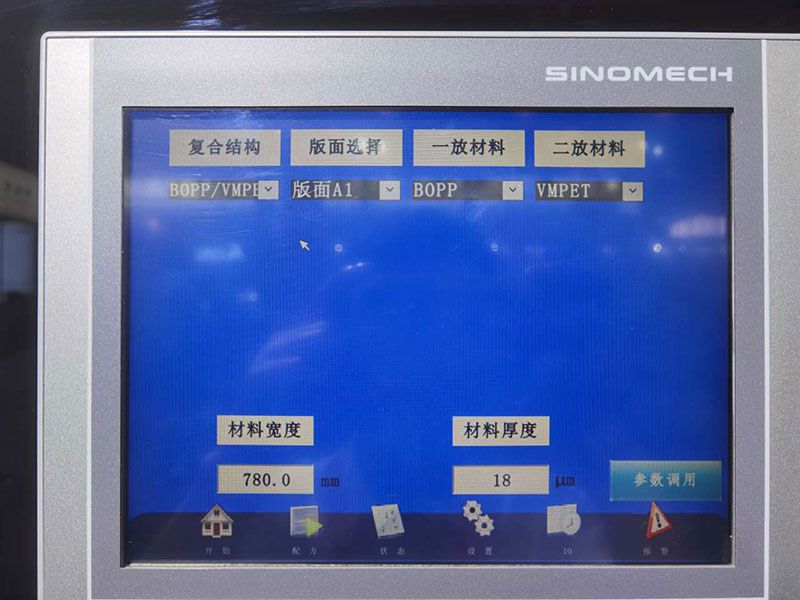

  • Convenient online management for lamination machine, adhesive and laminates

  • Convenient online management for lamination machine, adhesive and laminates

    Each lamination machine is designed with a unique QR code, which is used for operation and management in a convenient manner.

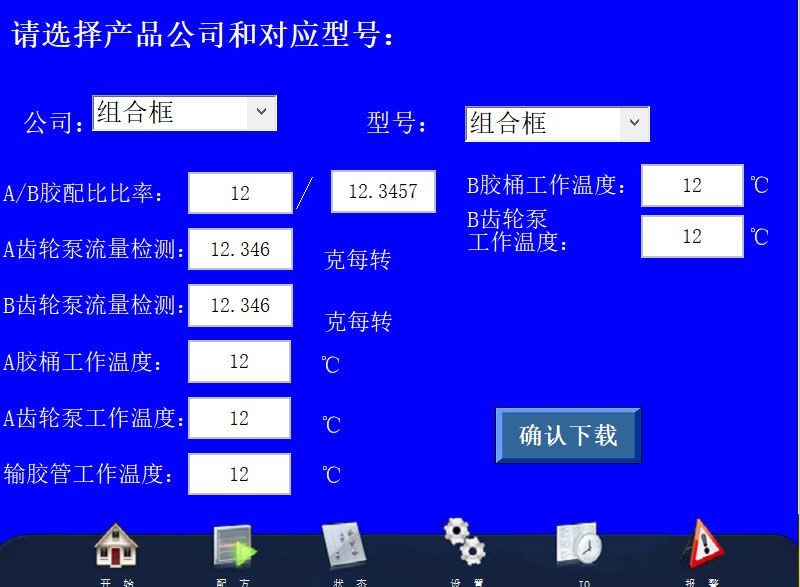

    The identification of the solventless adhesive is performed by scanning the QR code. The product parameters can be recalled from the data system, and the process parameters can be automatically set.
    The data of laminates can be automatically stored and encoded for convenient management. In addition, online label printing can be made by connecting with the printing system.
  • Good connectivity among various units of the laminator

  • Good connectivity among various units of the laminator

    All units including laminating, adhesive mixing, heating, exhaust, cooling, corona treating are integrated in the lamination machine, which are central controlled by the touch screen. In addition, they are allowed to communicate with the management system and printing system.

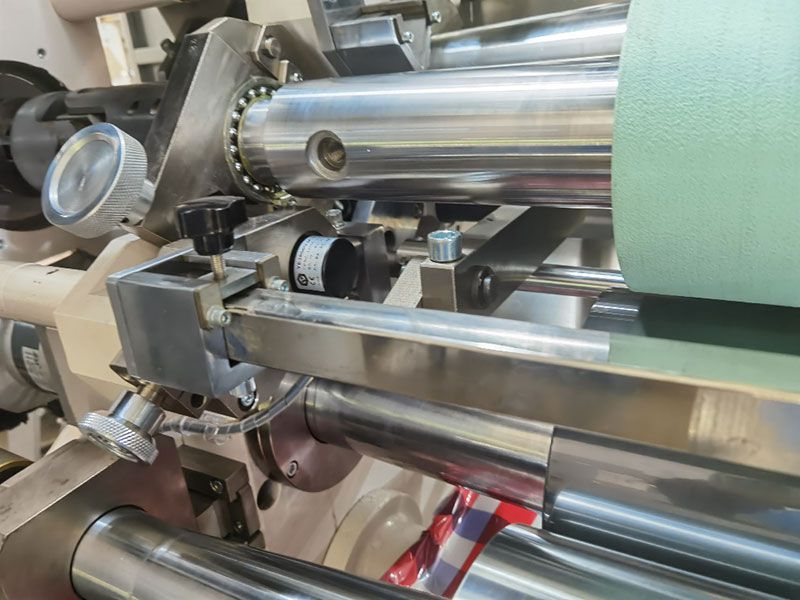

  • Transmission mechanism for the transfer roller

  • Transmission mechanism for the transfer roller

    The solventless lamination machine is specially designed with a superior quality transmission mechanism for the sleeved transfer roller, ensuring constant-pressure contact between the transfer roller and two steel rollers.

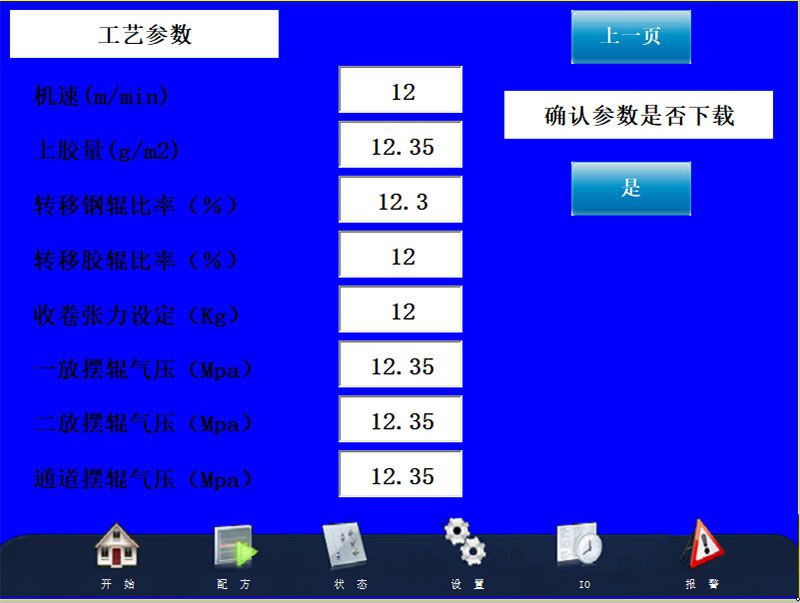

  • Recipe system

  • Recipe system

    All lamination machines are equipped with a recipe system for job file storage to be easily recalled from the memory. During the repetitive production, the production parameters can be quickly recalled from the memory. Parameter reset of each process can be made with a single click in a quick and accurate manner.

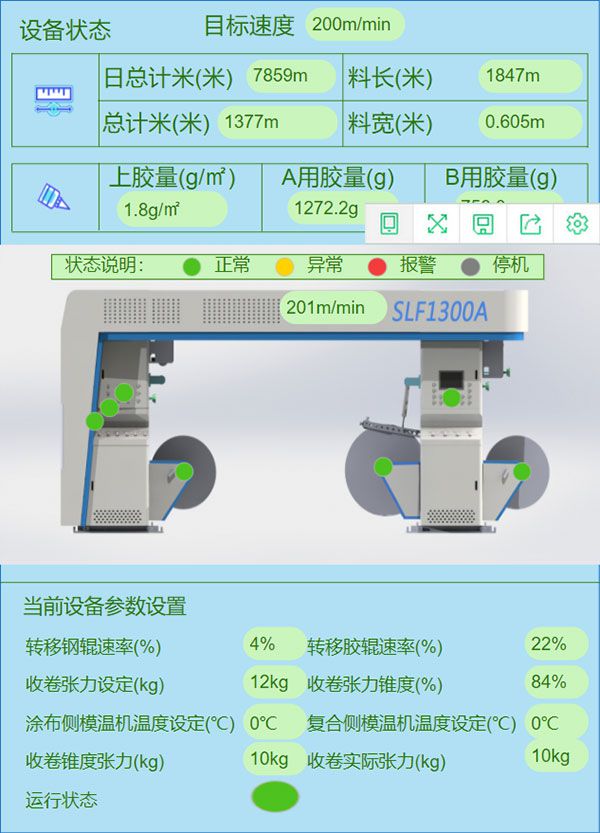

  • Remote monitoring & management, and online support system

  • Remote monitoring & management, and online support system

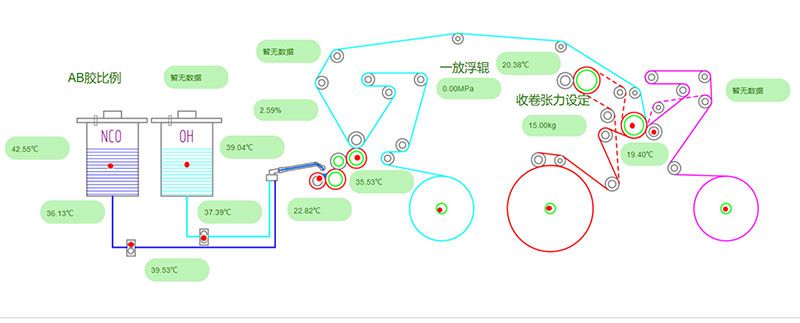

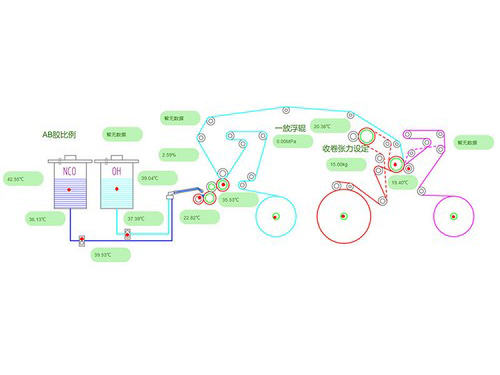

    Open to be integrated into Sinomech Cloud Platform for Solventless Laminators (SCPSL), and easy access to online support system, providing great convenience in operation, maintenance, and technical support.

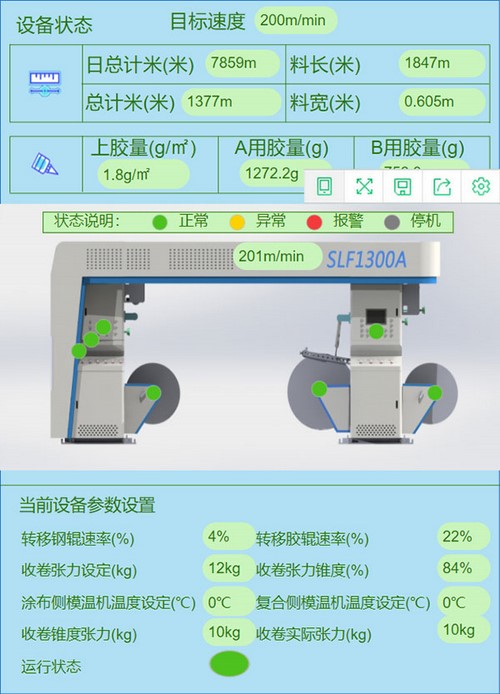

  • Online data management platform for lamination process

  • Online data management platform for lamination process

    Accumulates lamination process parameters set based on various substrates, lamination structures, and adhesives to create a data system covering common lamination processes used in the flexible packaging.

Optional

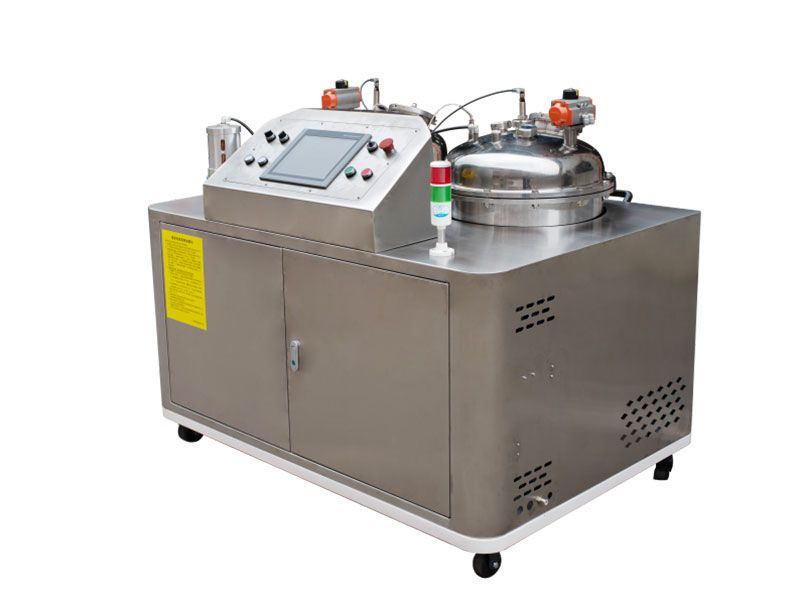

  • Continuous adhesive mixing and dispensing system

  • Continuous adhesive mixing and dispensing system

    Continuous adhesive dispensing increases production flexibility with consistent and accurate dispensing to multiple applications simultaneously.

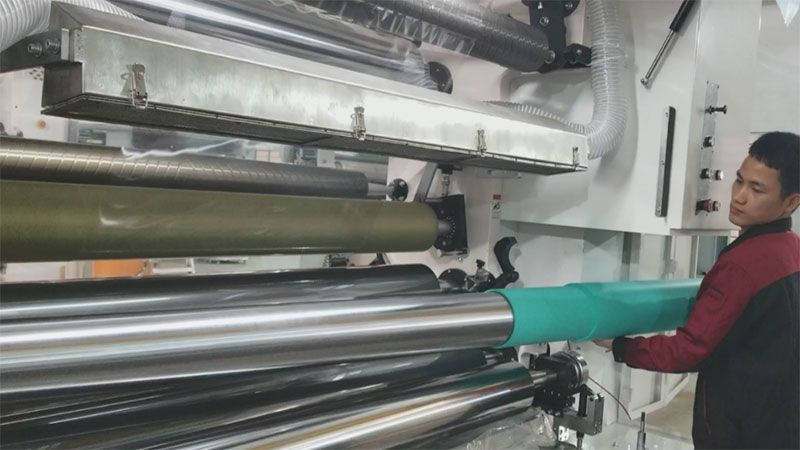

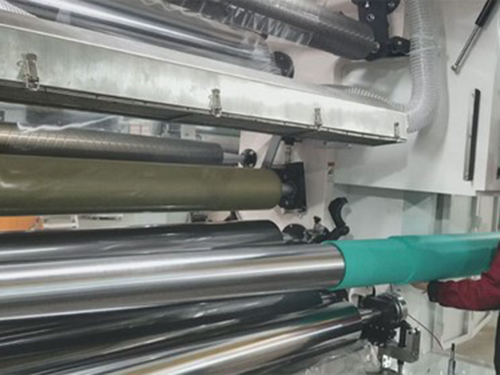

  • Sleeve type transfer roller

  • Sleeve type transfer roller

    The sleeved transfer roller enables very quick and easy on-board sleeve exchange.

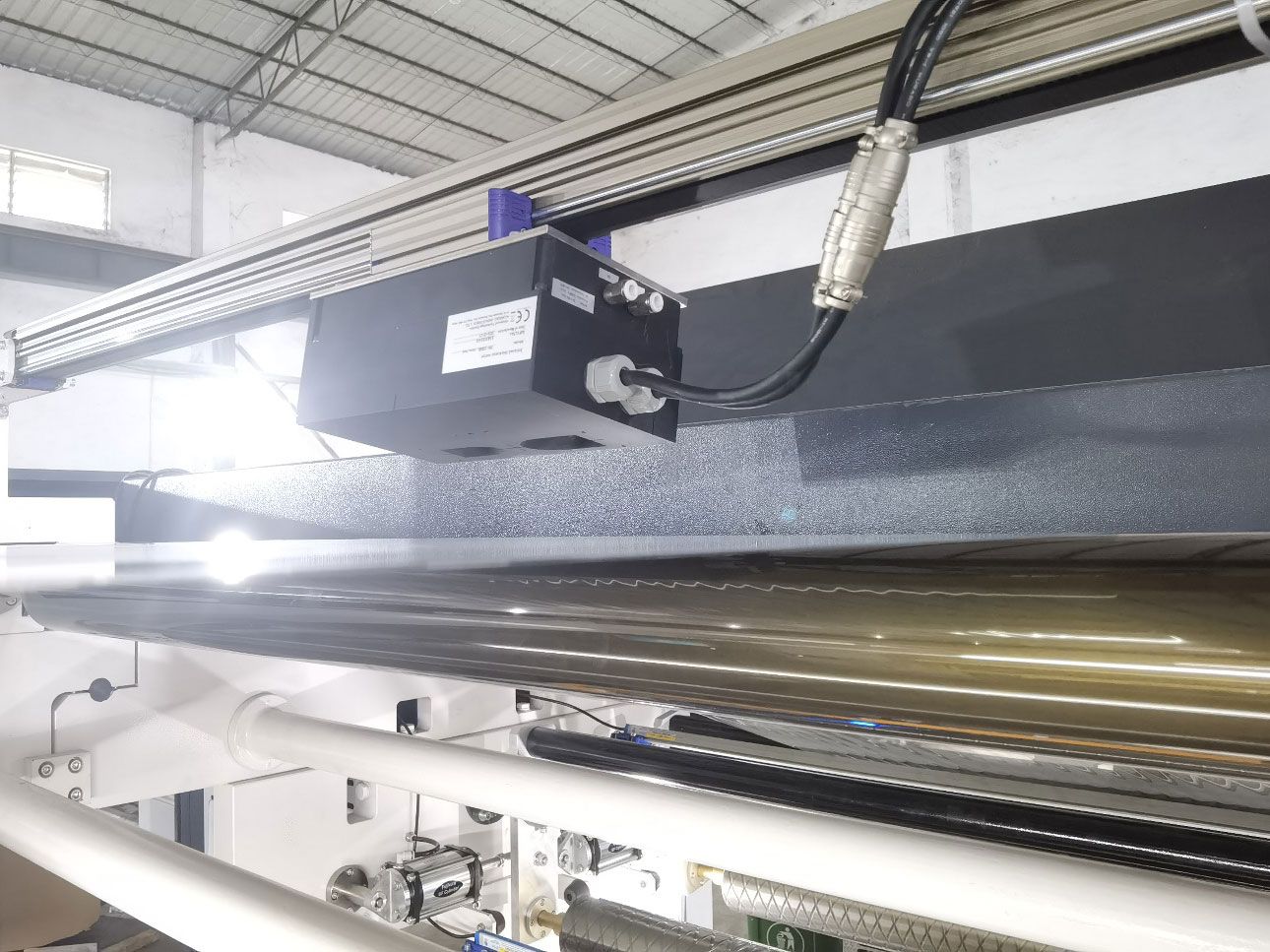

  • Automatic control and measurement system

  • Automatic control and measurement system

    In-line grammage measurement and automatic control for adhesive applied greatly enhances productivity and finished product quality.
