Quadplex Solventless Lamination Line, A400-13-4V

Solventless Lamination Machine

Quadplex Solventless Lamination Line, A400-13-4V
Max laminating speed: 400m/min
Max web width: 1300mm
Max unwinding diameter: 1000mm
Max rewinding diameter: 1000mm
Inner diameter of core: 3'' or 6''
Reel fixing: shafted or shaftless
Laminate structure: duplex, triplex, quadplex

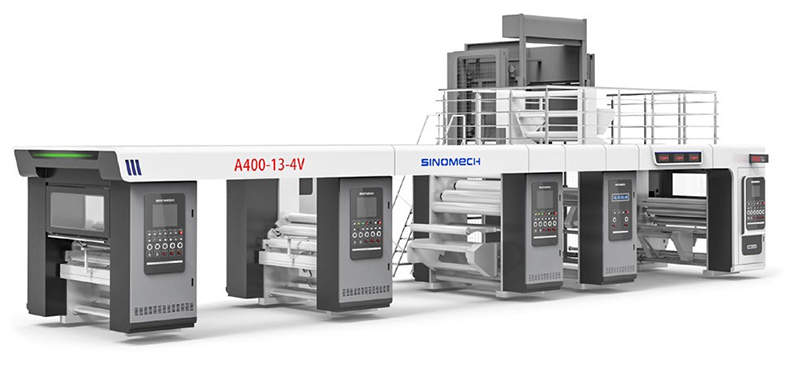

  • Quadplex Solventless Lamination Line, A400-13-4VModular quadplex laminating unit

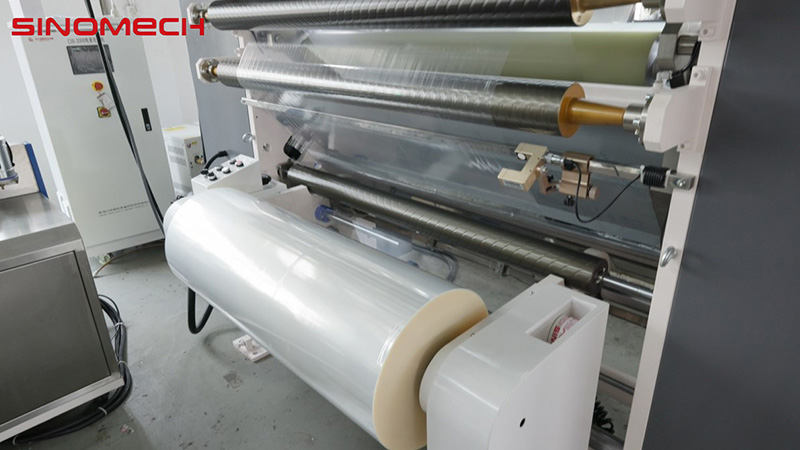

  • Quadplex Solventless Lamination Line, A400-13-4VUnwinding unit

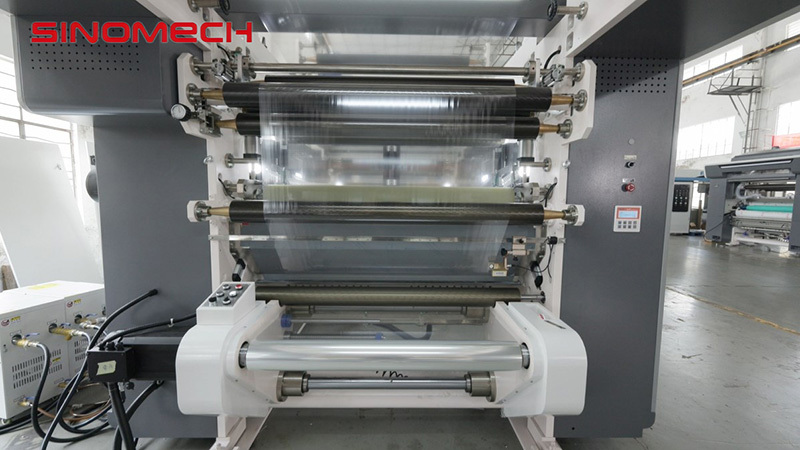

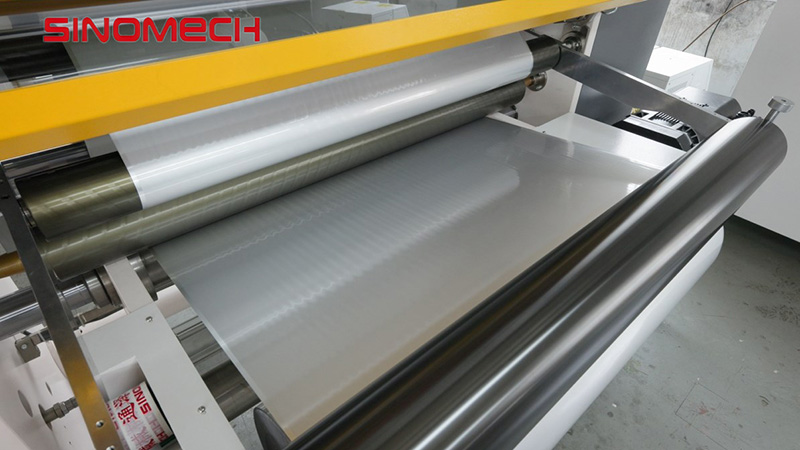

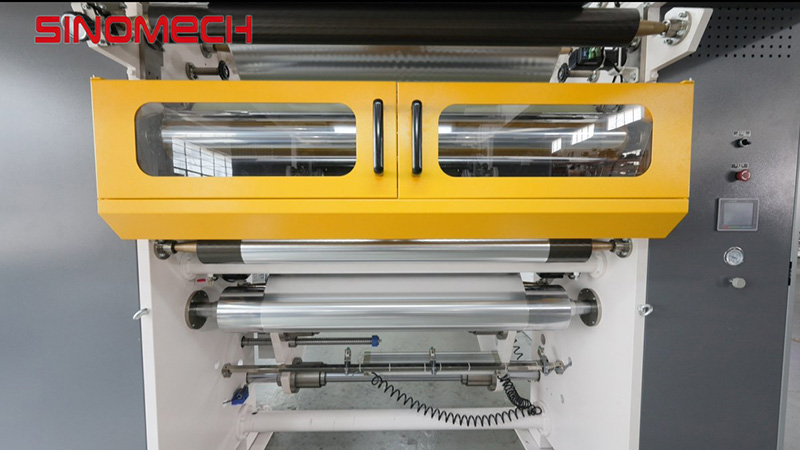

  • Quadplex Solventless Lamination Line, A400-13-4VLaminating unit
  • Quadplex Solventless Lamination Line, A400-13-4VUnwinding unit

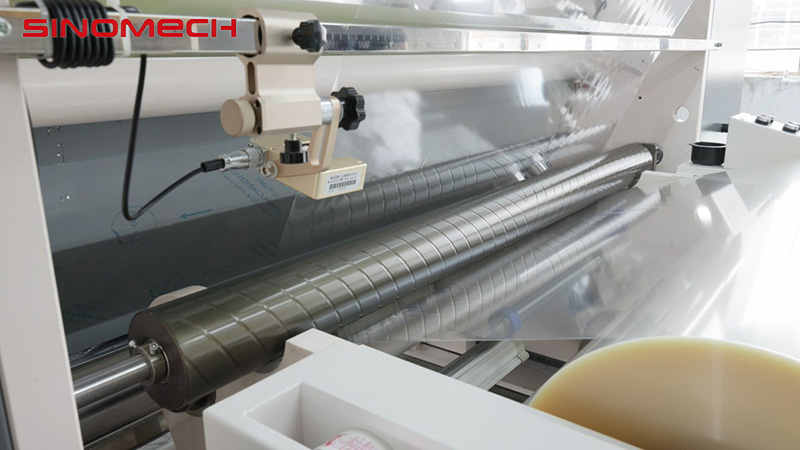

  • Quadplex Solventless Lamination Line, A400-13-4VSidelay-registration for substrates & coating layers
Features
  • Supports a wide range of flexible materials, including plastic films, metallized films, aluminum foil, and light paper
  • It can carry out two-layer, three-layer, or even four-layer solventless lamination in a single pass
  • Ideal for complex lamination jobs that require high efficiency and material versatility
Main Functions
  • A sidelay registration system ensures precise lateral alignment of both substrates and adhesive coating, eliminating the need for standard web guide rollers.
  • Tension is independently controlled across each section and layer, providing better stability during long web paths and complex multi-layer laminations.
  • Coating weight is digitally managed using individual servo-driven metering rollers, ensuring accurate and consistent adhesive application.
  • The laminating system operates through a digitally integrated workflow based on modular layout and process topology.
  • An inline air removal system improves adhesion performance in multi-layer lamination by eliminating trapped air between layers.
  • The upgraded metering and mixing unit includes internal preheating tanks to maintain adhesive stability and reduce temperature fluctuations.
