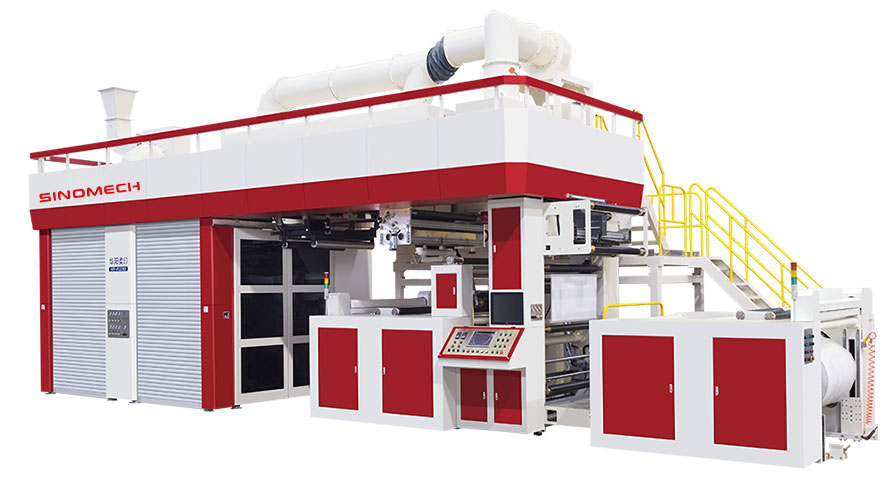

BOOMING Gearless CI Flexo Printing Press

BOOMING Gearless CI Flexo Printing Press
Advantages
  • Quick job changeovers
  • Superior print quality
  • High throughput and productivity
  • Fully-integrated systems
Applicable Materials
  • Paper
  • Film
  • Foil
  • Non-wovens
  • Laminates

This flexo printing machine is sleeve type 8-color CI flexo press, which is mainly applied to the printing industry for plastic film, breathable film, non-woven fabric and other materials with low tension.

The operation process of the flexographic printing press is described as follow:
  • Dual-station unwind
  • In-feed
  • Web guiding
  • 8 colors printing
  • Static image obverse
  • Drying
  • Out feed with cooling system
  • Web guiding
  • Dual-station rewind rtrewindrewindrewind
Main Configurations
Unwinding unit
1 set
Printing unit
1 set
In-feed unit
1 set
Drying system
1 set
Out-feed unit
1 set
Rewinding unit
1 set
Web guide system
2 sets
Pre-register device
1 set
Control system and operating platform
1 set
Technical Parameters
Machine direction Printing unit is on the left of rewinding unit (see on the operation side)
Substrate BOPP 15~100μm, PE 20~140μm, PET 10~60μm, BOPA 15~60μm, PAPER 30~100gsm, etc. similar material. Remark: The thickness and width for the printing material should match with setting tension.
Guide roller width 1250mm
Printing width 1200mm
Printing unit 8 colors
Printing repeat length 380 ~ 880 mm
Print register precision ±0.1mm
Tension control range 10~ 120 N/full web
Plate thickness 1.7mm, 1.143mm
Adhesive tape thickness 0.38mm, 0.5mm
Max. mechanical speed 300m/min
Running speed 15 ~ 280m/min, subject to the following factors: - Substrate - Ink and solvent - Print image and print quality
Ink type Water based ink, alcohol-soluble ink or solvent based ink
Drive method of printing unit Servo motor drive
Register control Servo motor control
Print cylinder, anilox roller Sleeve type
Max. un/rewind diameter ⌀ 800mm
Heating & drying system Electricity/gas/steam/oil heating
Motor power About 130kW (usually use 65%)
Electric heating 126kW
Max. Noise Below 85dB
Machine color RAL3020 (red) + RAL9001 (colored yellow)
