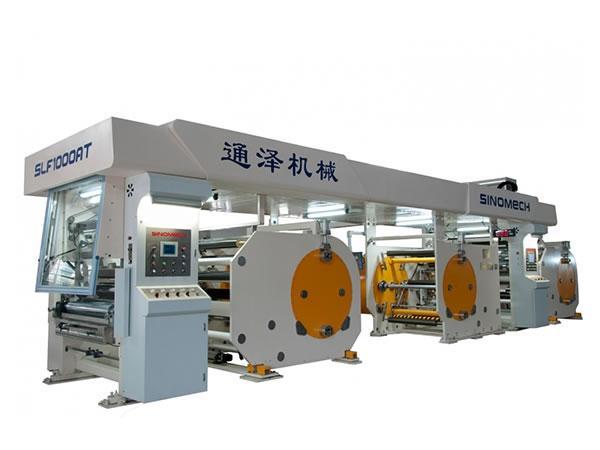

Solventless Laminator with Turret Winders SLF-AT
Solventless Lamination Machine
Application Scope
A variety of films and aluminum laminated film
Flying Splicing Mode
Maximum speed: 400m/minute
- Max mechanical speed: 400m/min
- Max web width: 1050, 1300, 1500mm
- Max unwinding diameter: 800/1000mm
- Max rewinding diameter: 1000mm
- Core ID: 3"or 6"
- Overall dimension (L x W x H): 14000 x 4000 x 3500 mm
- Applicable Industries
- Large and medium sized flexible packaging companies
- Tension control mode: section dancing roller tension control, servo control
- Coating unit control: servo motor
- Three automatic splicing modes: semi-automatic full speed non-stop slicing, automatic full speed non-stop slicing, constant speed (deceleration) non-stop splicing
- Digital servo control: unwinding, rewind coating, laminating, and other control points are controlled by an independent servo drive, which achieves the digital tension control and digital coating volume control
- Easy operation: double touch screen (main control panel and coating control panel), multiple local control panels, transmembrane chain mechanism
- Significant improvement in safety and sanitary conditions: protective shield for coating, dust cover for drag link mechanism
Get in Touch

As a leading solventless lamination machine manufacturer in China, SINOMECH offers various solventless laminators in standard and customized models to meet different lamination needs in the fields of flexible packaging, tobacco packaging, home decorative materials, etc. Whether you are manufacturing laminates to pack food, goods or liquids, SINOMECH lamination machines with high performance are the perfect choice for your products. As important converting machinery, our web lamination machinery is designed to meet the highest quality and product safety requirements. Various substrates including plastic film, metalized film, alu foil, rigid film, paper, cardboard adapt to being laminated with our machines. In addition to the film laminators, we also provide flexo printing press and slitting machine to realize one-stop solution for manufacturing your packaging. Thanks to our own research and development, we are able to find the perfect lamination solution for each product without forgetting environmentally friendly solutions. We are always ready to help you with our know-know in the laminating industry.
-
- Portable Adhesive Mixer SM2-5
- Mixing ratio
- 30:100 ~100:100
- Gear pump driver motor
- Vector motors
- Tank capacity
- 2 x 5 L
-
- Standard Adhesive Mixer SM1-40
- Mixing ratio
- 30:100~100:100
- Gear pump driver motor
- servo motors
- Tank capacity
- 2 x 40L
-
- Solventless Laminator (for Decorative Materials)
- Max lamination speed
- 50m/min
- Max web width
- 1300/1500mm
- Max unwinding diameter
- 600mm
-
- BOOMING Gearless CI Flexo Printing Press
- Print width
- 1200mm
- Print unit
- 8 colors
- Printing repeat length
- 380 ~ 880 mm
