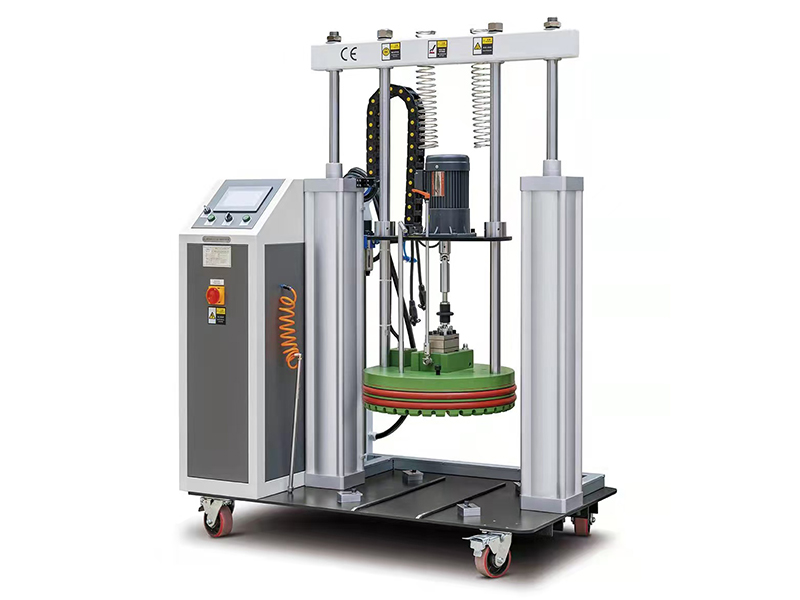

Single Component Adhesive Dispensing System, SM3-200
This is a unique machine for the direct supply of glue to the coating unit in a solvent free lamination machine. The heating temperature can be freely set and automatically controlled.
- Glue type: Mono-component PUR glue
- Application: Continuous lamination
- Tank capacity: 200kg
- Maximum working temperature: 120℃
- Heating method: Electric heating with circular plate
- Glue pump: Gear pump
- Installed power: 9KW
- Weight: About 350kg
- Machine dimensions: 1680 x 800 x 1920mm (L x W x H)
- This glue machine is specially designed for the dosing from large tanks directly onto the coating unit of a solvent free lamination machine, making it suitable for all mono-component PUR glues.
- The glue in the large tank is to be heated to the working temperature with a circular heating plate and automatic temperature control. The glue level on the laminator is then detected with an ultrasonic, which automatically controls the gear pump.
- The gluer is suitable for large coating amount applications, such as paper based lamination, when there is a supply of 20kg tanks.
- Continuous lamination of large mono component glue, such as paper/plastic, paper/aluminum, and more.
- The constant positioning mechanism on the measuring roller achieves a single adjustment of the gap and long term fixing. This mechanism is a Sinomech patented product.
- The counter-weight rewind and roller pressing mechanism ensure a more accurate and intuitive setting and adjustment of the pressure.
- The automatic positioning mechanism of deviation correct scanning head allows users to automatically, quickly and accurately adjust the position of the scanning head.
- A detachable compound backpressure roller (optional) can improve the stability of wide or thick substrates.
- The management information system on the lamination machine (optional) can store production information and technical parameters.
