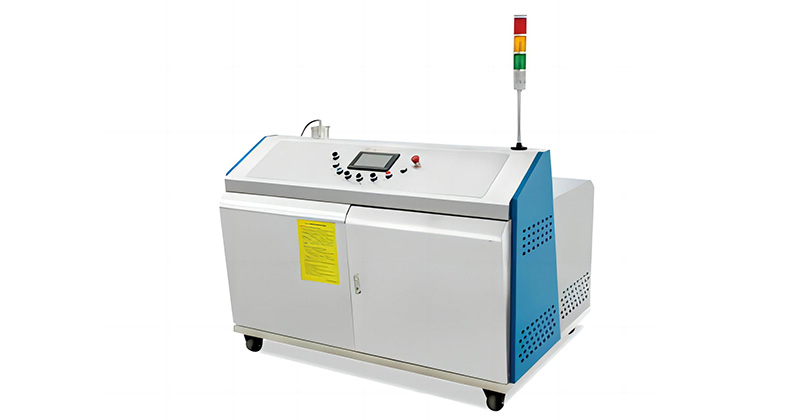

Standard 2-Component Adhesive Mixer, SM1-40
Patented product, high precision mixing ratio from 30:100 to 100:100
- Two-component solvent free glue
- Mixing ratio: 30:100~100:100
- Gear pump driver motor: servo motors

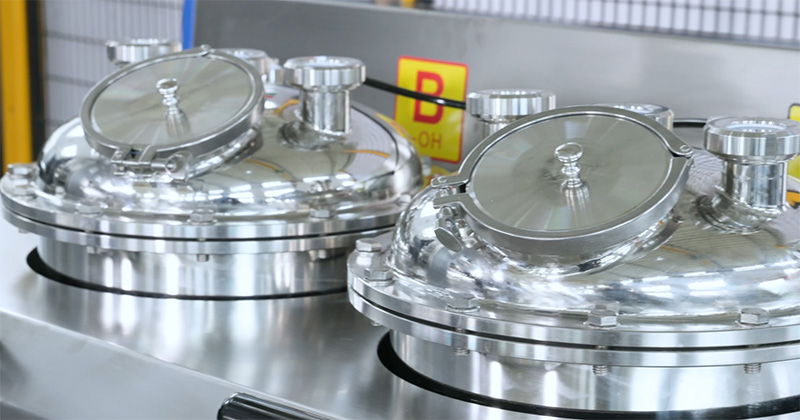

- Tank capacity: 2 x 40L
- Maximum working temperature: 70℃
- Installed power: 4KW
- Weight: About 500kg
- Auto-refilling system: optional
- Machine dimension: 1350 x 1000 x 1250mm (L x W x H)

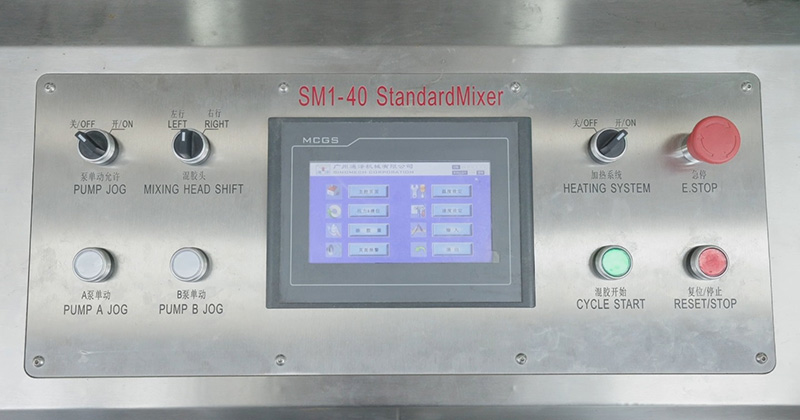

The SM1-40 standard mixer is a patented metering mixer, suitable for two component, solvent free glues. The gear pumps are driven by servo motors instead of vector motors, in order to ensure a more accurate and stable mixing ratio over other similar products on the market today. Controlled using a PLC touch screen, and featuring automatic control for temperatures, piping pressure, and glue level, the mixer can be used for various laminators with different running speeds, working width and coating amounts.
