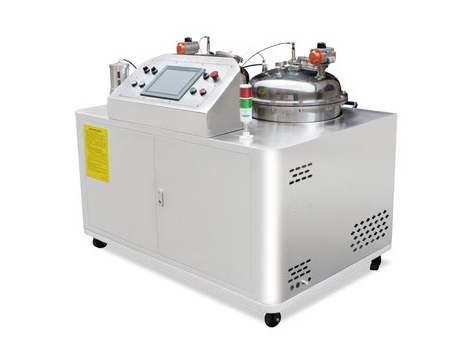

Solvent-Free Adhesive Metering Mixer with Preheating, SM7-40

Patented product, high precision mixing ratio from 30:100 to 100:100

Metering Mixer with Preheating, SM7-40
Two-component solvent free glue
Mixing ratio: 30:100~100:100
Gear pump driver motor: servo motors
Tank capacity: 2×40L
Max working temperature: 70℃
Installed power: 4kW
Weight: about 500kg
Auto-refilling system: optional
Machine dimensions (L×W×H): 1400×1100×1250mm
Features

Engineered for two-component solventless adhesives, this metering mixer integrates preheating to improve adhesive flow and stability during operation. It uses servo-driven gear pumps to achieve precise and consistent mixing ratios ranging from 30:100 to 100:100, delivering better performance than traditional vector motor systems. Thanks to its user-friendly PLC touchscreen interface, operators can easily control temperature, pipeline pressure, and glue levels in real time. The metering mixer with preheating functions adapts to different laminator types and speeds, ensuring reliable adhesive delivery across various web widths and coating applications.
