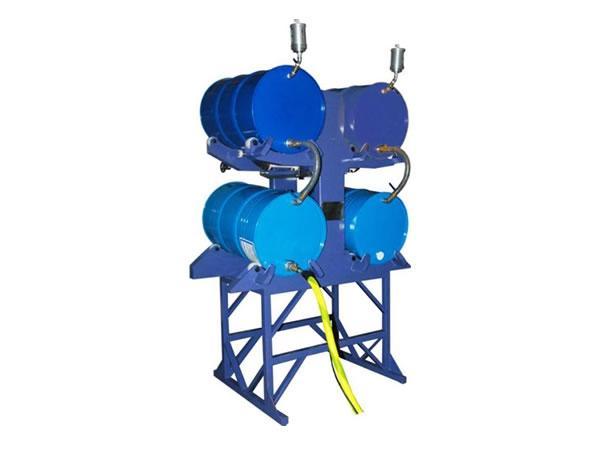

Horizontal Automatic Adhesive Refilling System, AR2-200-4

This machine is known for the independent research and development that went into it, as well as the continuous lamination it supports.

Horizontal Automatic Adhesive Refilling System, AR2-200-4
Glue type: Two-component solvent free glue
Application: Continuous lamination production
Tank capacity: 200 Kg, 4 sets
Weight: About 560Kg
Machine dimensions (L x W x H): 1700 x 1420 x 2620mm
Features
  • The AR2-200-4 horizontal refilling system (HAS) is designed for automatic glue refilling from a large tank directly into the tanks of a standard mixer.
  • The HAS is comprised of 4 large tanks, a two layer stand and the piping assembly.
  • Working based on the principles of gravity, glue flows from the upper layer tanks to the lower layer tanks, and the level sensor in the mixer tanks automatically controls the valve between the lower level tank and the mixer tank.
  • Working together with the SMI-40 standard mixer, the HAS is suitable for the continuous lamination of all 2 component solvent free glues.
